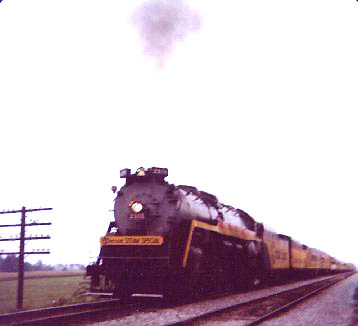

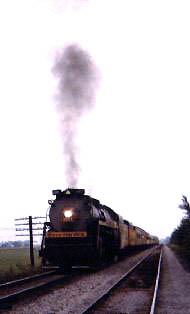

Reading Company T-1 2101

• LENGTH 110'6"
• DRIVING WHEEL DIAMETER 70"
• WEIGHT ON DRIVERS 278,200 lbs.
• TOTAL ENGINE WEIGHT 441,300 lbs.
• TOTAL WEIGHT IN WORKING ORDER, ENGINE and TENDER 809,000 lbs.
• GRATE AREA 94.5 sq.ft.
• CYLINDERS(2) 27in. Dia. 32 in. Stroke
• CYLINDER HORSEPOWER 3,147
• BOILER PRESSURE 240 P.S.I. MAX.
• TRACTIVE EFFORT: LOCOMOTIVE 68,000 lbs. w/ BOOSTER 79,100 lbs.
• TENDER CAPACITY: 19,000 Gallons Water 26 Tons Coal
